An API request requires variable codes of the selected variables and ucgid (geographic code). This notebook is used to retrieve variable codes in ACS tables.

The U.S. Census Bureau provides variable metadata in JSON format. These JSON format documentations were downloaded and saved as .json files in project folder:

• b_variables.json was downloaded from Detailed Tables Variables.
• s_variables.json was downloaded from Subject Tables Variables.
• dp_variables.json was downloaded from Data Profiles Variables.

These 3 files are used to look up variable codes based on table IDs and variable labels.

import json
import pandas as pd

# Load the feature metadata for Detailed Tables
with open ('b_variables.json', 'r') as file:
    b_variables = json.load(file)
b_var = b_variables['variables']
b_var = pd.DataFrame(b_var).transpose().reset_index()
b_var.rename(columns={'index':'var_code'}, inplace=True)
b_var.tail()

	var_code	label	concept	predicateType	group	limit	predicateOnly	hasGeoCollectionSupport	attributes	required
36719	B20005I_071E	Estimate!!Total:!!Female:!!Worked full-time, y...	Sex by Work Experience in the Past 12 Months b...	int	B20005I	0	NaN	NaN	B20005I_071EA,B20005I_071M,B20005I_071MA	NaN
36720	B08113_054E	Estimate!!Total:!!Worked from home:!!Speak oth...	Means of Transportation to Work by Language Sp...	int	B08113	0	NaN	NaN	B08113_054EA,B08113_054M,B08113_054MA	NaN
36721	B06009_006E	Estimate!!Total:!!Graduate or professional degree	Place of Birth by Educational Attainment in th...	int	B06009	0	NaN	NaN	B06009_006EA,B06009_006M,B06009_006MA	NaN
36722	B05009_012E	Estimate!!Total:!!Under 6 years:!!Living with ...	Age and Nativity of Own Children Under 18 Year...	int	B05009	0	NaN	NaN	B05009_012EA,B05009_012M,B05009_012MA	NaN
36723	B02021_001E	Estimate!!Total Groups Tallied:	American Indian and Alaska Native Alone or in ...	int	B02021	0	NaN	NaN	B02021_001EA,B02021_001M,B02021_001MA	NaN

# Load the feature metadata for Subject Tables
with open ('s_variables.json', 'r') as file:
    s_variables = json.load(file)
s_var = s_variables['variables']
s_var = pd.DataFrame(s_var).transpose().reset_index()
s_var.rename(columns={'index':'var_code'}, inplace=True)
s_var.tail()

	var_code	label	concept	predicateType	group	limit	predicateOnly	hasGeoCollectionSupport	attributes	required
18642	S2402_C02_035E	Estimate!!Male!!Full-time, year-round civilian...	Occupation by Sex for the Full-Time, Year-Roun...	int	S2402	0	NaN	NaN	S2402_C02_035EA,S2402_C02_035M,S2402_C02_035MA	NaN
18643	S1002_C04_004E	Estimate!!60 years and over!!Percent distribut...	Grandparents	float	S1002	0	NaN	NaN	S1002_C04_004EA,S1002_C04_004M,S1002_C04_004MA	NaN
18644	S0601_C02_009E	Estimate!!Native; born in state of residence!!...	Selected Characteristics of the Total and Nati...	float	S0601	0	NaN	NaN	S0601_C02_009EA,S0601_C02_009M,S0601_C02_009MA	NaN
18645	S2411_C01_012E	Estimate!!Median earnings (dollars)!!Civilian ...	Occupation by Sex and Median Earnings in the P...	int	S2411	0	NaN	NaN	S2411_C01_012EA,S2411_C01_012M,S2411_C01_012MA	NaN
18646	S2302_C04_014E	Estimate!!Percent Families with own children u...	Employment Characteristics of Families	int	S2302	0	NaN	NaN	S2302_C04_014EA,S2302_C04_014M,S2302_C04_014MA	NaN

# Load the feature metadata for Data Profiles
with open ('dp_variables.json', 'r') as file:
   dp_variables = json.load(file)
dp_var = dp_variables['variables']
dp_var = pd.DataFrame(dp_var).transpose().reset_index()
dp_var.rename(columns={'index':'var_code'}, inplace=True)
dp_var.tail()

	var_code	label	concept	predicateType	group	limit	predicateOnly	hasGeoCollectionSupport	attributes	required
1384	DP02PR_0001PE	Percent!!HOUSEHOLDS BY TYPE!!Total households	Selected Social Characteristics in Puerto Rico	int	DP02PR	0	NaN	NaN	DP02PR_0001PEA,DP02PR_0001PM,DP02PR_0001PMA	NaN
1385	DP03_0039PE	Percent!!INDUSTRY!!Civilian employed populatio...	Selected Economic Characteristics	float	DP03	0	NaN	NaN	DP03_0039PEA,DP03_0039PM,DP03_0039PMA	NaN
1386	DP02_0098E	Estimate!!YEAR OF ENTRY!!Population born outsi...	Selected Social Characteristics in the United ...	int	DP02	0	NaN	NaN	DP02_0098EA,DP02_0098M,DP02_0098MA	NaN
1387	DP04_0095PE	Percent!!SELECTED MONTHLY OWNER COSTS (SMOC)!!...	Selected Housing Characteristics	float	DP04	0	NaN	NaN	DP04_0095PEA,DP04_0095PM,DP04_0095PMA	NaN
1388	DP02_0036PE	Percent!!MARITAL STATUS!!Females 15 years and ...	Selected Social Characteristics in the United ...	float	DP02	0	NaN	NaN	DP02_0036PEA,DP02_0036PM,DP02_0036PMA	NaN

Variables in this project are gathered from 3 different types of tables: Subject Tables, Detailed Tables, Data Profiles.

A variable code starts with a table ID with the first letter representing the table type: "S" for Subject Tables, "B" for Detailed Tables, "DP" for Data Profiles. For examples: S1701_C03_001E, DP03_0009PE, etc.

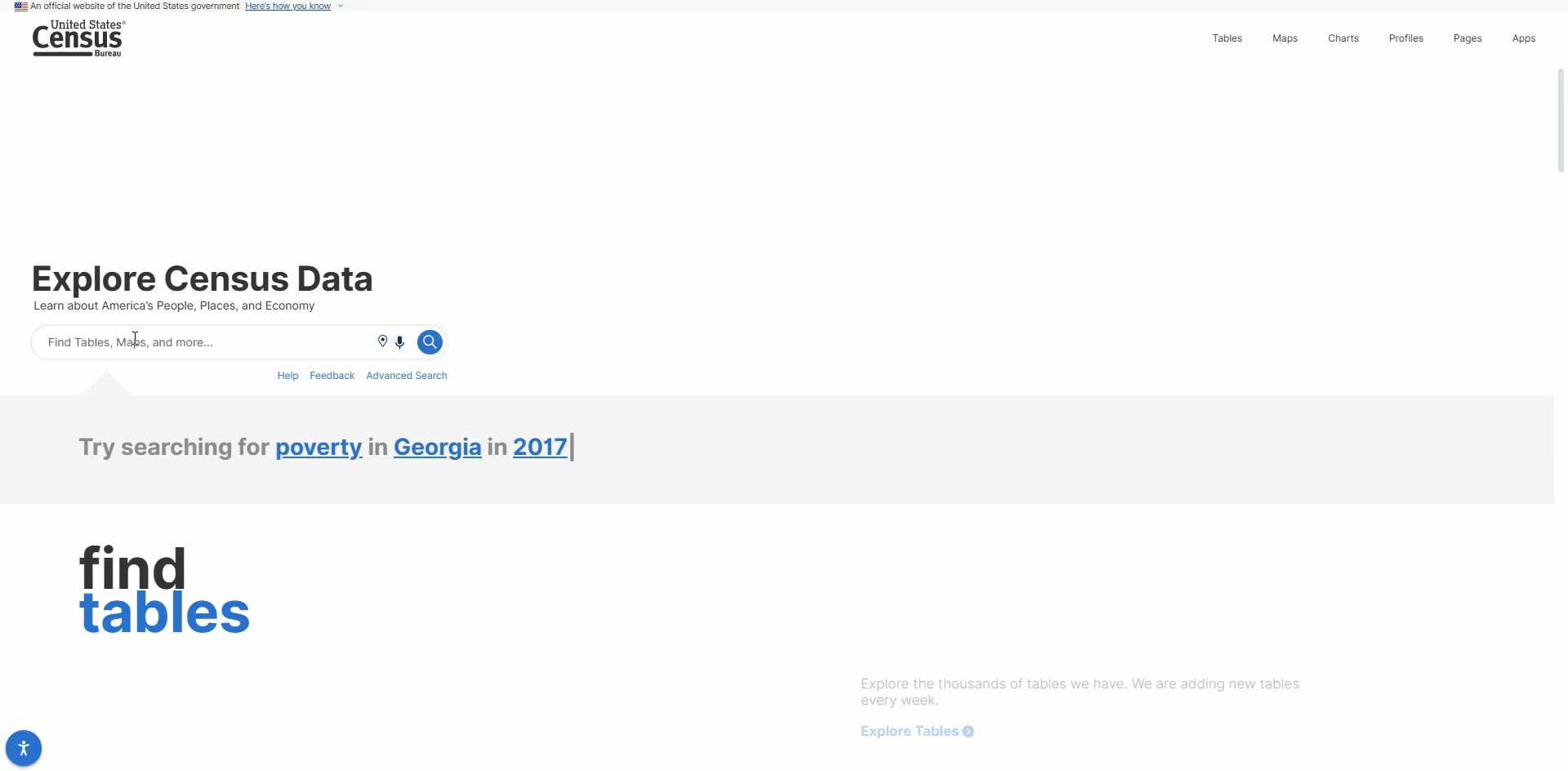

Relevant variables are selected by browsing tables and variable labels on https://data.census.gov/.

To retrieve variable code of a selected variable, run the below code and enter table ID, column names, and labels as prompted (case insensitive; leading and trailing spaces are accepted).

Example: to get variable code for poverty rate:

• Input:
  Table ID: s1701
  Parent column: percent below poverty level
  Child column: estimate
  Parent label: Population for whom poverty status is determined
  Child label 1: Press Enter to skip
  Child label 2: Press Enter to skip
  Child label 3: Press Enter to skip
• Output:
  Table: S1701
  Variable label: Estimate!!Percent below poverty level!!Population for whom poverty status is determined
  Variable code: S1701_C03_001E

def input_prompt ():
    '''Prompt user to input table ID and label's components'''
    table = input('Table ID:')
    parent_col = input('Parent column:')
    child_col = input('Child column:')
    parent_label = input('Parent label:')
    child_label_1 = input('Child label 1:')
    child_label_2 = input('Child label 2:')
    child_label_3 = input('Child label 3:')

    # A list of label's components
    components = [child_col, parent_col, parent_label, child_label_1, child_label_2, child_label_3]

    return table, components


def get_var_label (components):
    ''' Return variable's label by assembling user's inputs'''
    label = []
    for i in components:
        # Filter out empty elements
        if i != '':
            label.append(i.strip())

    if len(label) <= 1:     # A label should have at least 2 components
        var_label = None
    else:
        var_label = '!!'.join(label)    # Components are assembled and separated by "!!"

    return var_label


def get_var_id (table, components):
    '''Call get_var_label function to retrieve variable label.
        Validate the format of table ID and variable label.
        If the table ID and variable label are valid, look up variable code based on table ID and variable label.'''

    var_label = get_var_label(components)

    if not table or not table.lower().startswith(('b','s','dp')) or var_label == None:
        raise ValueError('Invalid inputs!')
    else:
        if table.lower().startswith('b'):
            result = b_var.loc[(b_var['group'].str.contains(table, case=False)) & (b_var['label'].str.lower() == var_label.lower())]
        elif table.lower().startswith('s'):
            result = s_var.loc[(s_var['group'].str.contains(table, case=False)) & (s_var['label'].str.lower() == var_label.lower())]
        elif table.lower().startswith('dp'):
            result = dp_var.loc[(dp_var['group'].str.contains(table, case=False)) & (dp_var['label'].str.lower() == var_label.lower())]

        print(f'Table: {result['group'].values[0]}')
        print(f'Variable label: {result['label'].values[0]}')
        print(f'Variable code: {result['var_code'].values[0]}')


if __name__=='__main__':
    try:
        table, components = input_prompt()
        get_var_id(table, components)
    except ValueError as excpt:
        print(excpt)
    except:
        print('Variable not found! No matching table or label.')

Table: S1701
Variable label: Estimate!!Percent below poverty level!!Population for whom poverty status is determined
Variable code: S1701_C03_001E

References

• More information about ACS table types and variables: LINK
• The get_var_id function is adapted from a Stack Overflow thread: LINK
